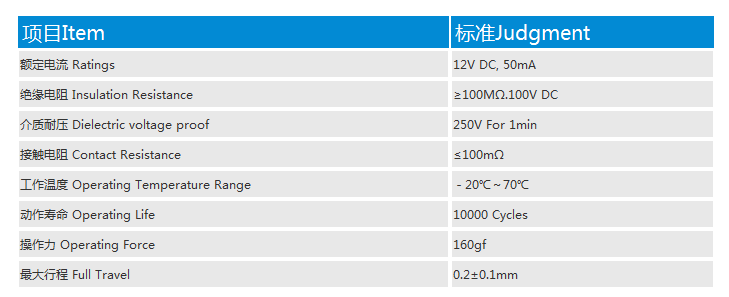

规格 Specifications

特点 Features

• ● 进口卧式侧按，能紧密的与产品结合，轻量化小侧按开关
• Horizontal side press, can be closely combined with the product, lightweight small side by switch
• ● 进口轻触开关，按钮较小，操作手感极佳，具有良好的导电性和兼容性
• The button is small, the operation is extremely good, has the good electrical conductivity and the compatibility
• ●进口轻触开关可采用编带包装，耐压、高温
• Can be used for packing, pressure, high temperature

测试 test

• ●在低电流(≤100mA)条件下测试
• At low current (less than 100mA) under the condition of test
• ● 测试相邻引脚之间，引脚与外壳之间绝缘阻抗

• Test between the adjacent pin, pin and the insulation resistance between the shell

• ● 输入一定电压(50-60Hz，电压值AC 500v)1分钟，漏电电流2mA,测试邻近端子间
• Enter a certain voltage (50-60Hz, voltage value 500V AC) 1 minutes, the leakage current 2mA, test adjacent terminals

用途 Applications

• ● 汽车音响，汽车导航器，远距离无车钥匙开锁系统。
• Car audio,car mavigation systems,Keyless entry systems.
• ● 家用电器、办公设备、安防设施、仪表仪器
• Household appliance, office equipment, security equipment, instrument and meter.
