卧式贴片4.5x3.4x3.5笑脸型带支架侧按轻触开关
卧式贴片4.5x3.4x3.5笑脸型带支架侧按轻触开关
  • SD-1268 4.5x3.4x3.4笑脸侧按开关

卧式贴片4.5x3.4x3.5笑脸型带支架侧按轻触开关

编号:433435

分类:大侧开关

型号:SD-1268

规格:

订购热线
0755-27954861
立即订购

产品详情

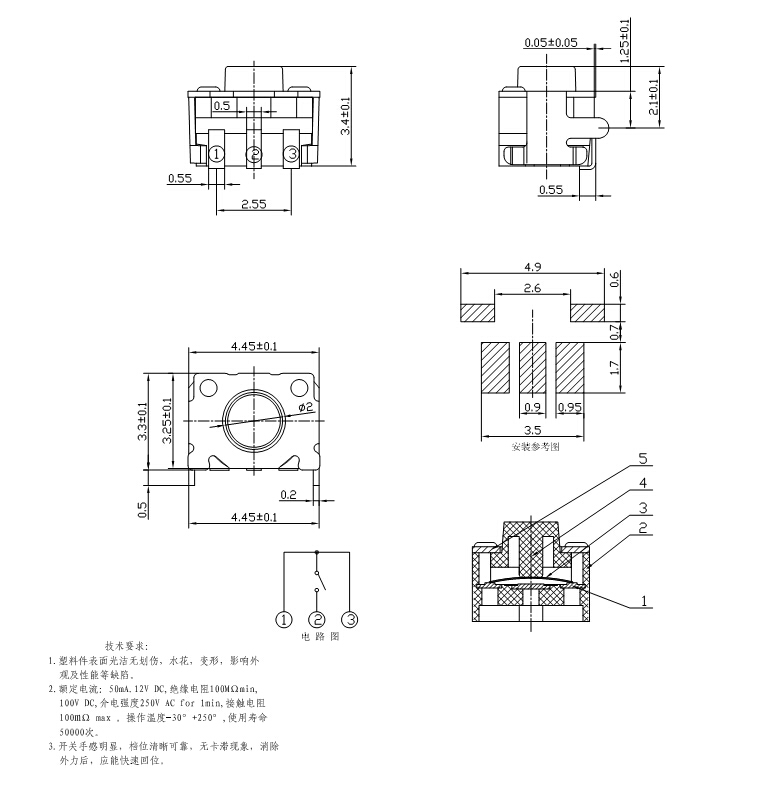

外形图 Diagram
卧式贴片4.5x3.4x3.5笑脸型带支架侧按轻触开关
产品规格 Specification
项目Item 标准Judgment
额定电流 Ratings 12V DC, 50mA
绝缘电阻 Insulation Resistance ≥100MΩ.100V DC
介质耐压 Dielectric voltage proof 250V For 1min
接触电阻 Contact Resistance ≤100mΩ
工作温度 Operating Temperature Range -20℃~70℃
动作寿命 Operating Life 50000 Cycles
操作力 Operating Force 160gf/200gf
最大行程 Full Travel 0.2±0.1mm
特点 Features
  • 其紧凑的结构为整机产品的小形,轻量化作出了贡献。
  • Its compact size contrilbutes to make application units to be smaller and lighter.
  • 按钮顶面积大,具有良好的操作性与贴装性能。
  • Large stem top surface.Excellence in operationality and mountability.
  • 开关采用12mm宽度编带包装。
  • Packaged with a 12mm wide embossed taping.
用途 Applications
  • 汽车音响,汽车导航器,远距离无车钥匙开锁系统。
  • Car audio,car mavigation systems,Keyless entry systems.
  • 适用于电子化的各种音响设备,汽车,通讯设备,测量仪器等各种操作。
  • For operating various electronic devices such as audio devices,automotive units,communication devices,measuring instruments,etc.
